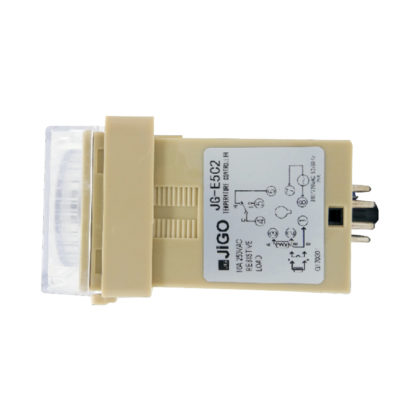

E5C SERIES
| TECHNICAL DETAILS | SPECIFICATION |
| Temp. Range | 0~99.9°C, 0~399°C, 0~599°C, 0~999°C |
| Input specification | (K.J)PT100Ω |
| Set deviation | ≤±1%/0.5% less than 0.5% full scale or range display |
| Indicating precision | Less than±2°C |
| Control action | ON/OFF type,proportion type(PD) |
| Output mode | Relay connection point 5A 250VAC,voltage of non connecting point 12VDC for SSR use |
| Dimension | AC110V/220V ±10% 50/60HZ |
| Size | 48*48*100mm / 48 * 96* 110 mm (E5EN) |
| Power consumption | 3W |
